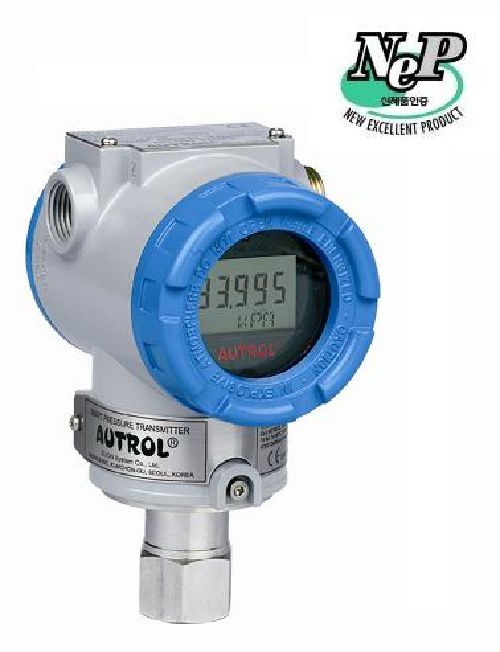

▶ CATALOG ▶ MANUAL    (same as APT3700N)▶ The APT3700N Smart Pressure Transmitter is a micro-processor based high performance transmitter, which has flexible pressure calibration and output, automatic compensation of ambient temperature and process variable, configuration of various parameters, communication with HART protocol.
    The application is very various, as measuring pressure, flow and level by application method.

| Features |
|---|
| - Superior Performance   • Reference Accuracy : ±0.075% of Calibrated Span   • Long-Term Stability   • High Rangeability ( 100 : 1 ) - Flexibility   • Data configuration with HART configurator   • Zero point Adjustment & suppression - Reliability   • Continuous Self-Diagnostic Function   • Automatic Ambient Temperature Compensation   • Fail-mode Process Function   • EEPROM Write Protection - Equipment Qualifications   • Environmental Qualification   • Seismic Qualification and EMI/RFI Test |
| Specifications | |
|---|---|
| Flexible Sensor input | Absolute Pressure, Vacuum |
| Various output | 4 ~20mA , Digital Signals |
| Setting Various Parameters | Zero/Span, Trim, Unit, Fail-mode, etc. |
| Self Diagnostic Function | Sensor, Memory, A/D Converter, Power, etc |
| Digital Communication | HART protocol |
| Working Pressure Limits (silicone oil) | 0 to 400 kPa for Range 4 0 to 1500 kPa for Range 5 0 to 3000 kPa for Range 6 |
| Hydrostatic Test Pressure | Range 4 : 58 psi ( 400 kPa) Range 5 : 218 psi ( 1500 kPa) Range 6 : 435 psi ( 3000 kPa) |
| Burst Pressure | 2000 psig (13.8 MPa) |
| Qualified per IEEE Std 344-1987 and IEEE Std 323-1983, Regulatory Guide 1.180 | |
