ATT-2100
Description

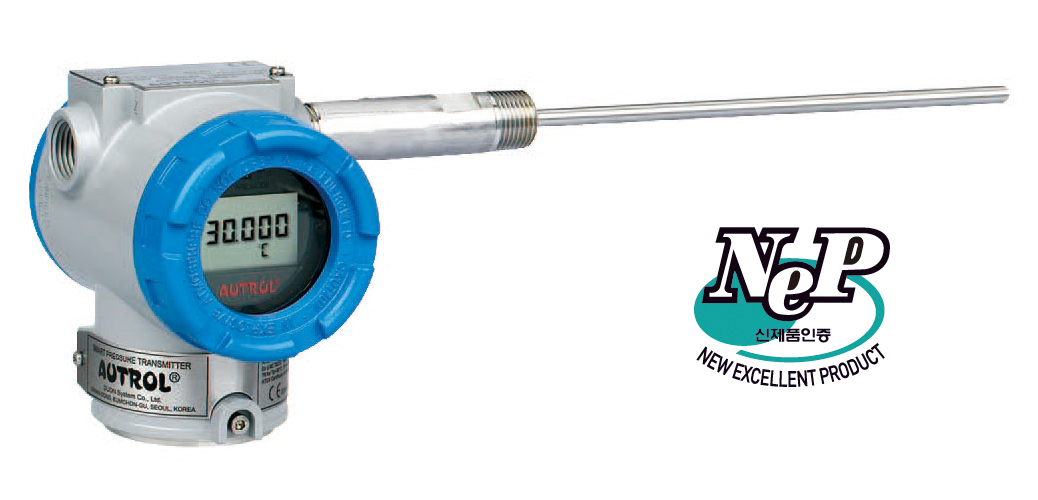

The ATT-2100 Smart Temperature Transmitter is a micro processor-based high performance transmitter, which has flexible sensor input and output, automatic compensation of ambient temperature and process parameters, configuration of various parameters, communication with HART protocol.
All Data of Sensor (Tag No., type, range etc.) is to be input, modified and stored. HART communication can be max 1.5 km. In Multi-drop Mode, Max 15 Transmitters can be connected and communicated with Host.
Features
- Superior Performance
-
- High Accuracy : ±0.1% FS(at 20℃, mV input)
- Long-Term Stability
- Flexibility
-
- Selection of various T/C, RTD, mV, Ohm, SPAN
- Data Configuration with HART configurator
- Reliability
-
- Continuous Self Diagnostic Function (sensor, memory, communication).
- Automatic Compensation : Linearization of sensor input, Ambient temperature
- Compensation
-
- Fail-mode process function by hardware and software
- EEPROM Write Protection
- I/O Isolation : Grounded T/C input
- CE EMC Conformity Standards(EN50081-2,EN50082-2)
Specifications
- Flexible Sensor input : Thermocouples, RTD, mV, Ohm
- Various output: 4 ~20mA(Analog), Digital Signals (LCD)
- Automatic Temperature Compensation by Linearization table in which user can modify the various necessary values
- Automatic Compensation of Ambient Temperature
- Setting Various Parameters : Zero/Span, Fail-mode, Unit, Trim, etc.
- Self Diagnostic Function : Sensor, A/D Converter, Memory, Power, etc.
- Digital Communication with HART protocol (275 HHT)
- Flameproof Approval and Intrinsic Safety Approval : KOSHA, KTL, CSA, ATEX
