APT-3700N
- 첨부파일0
- 추천수
- 0
- 조회수
- 725
내용

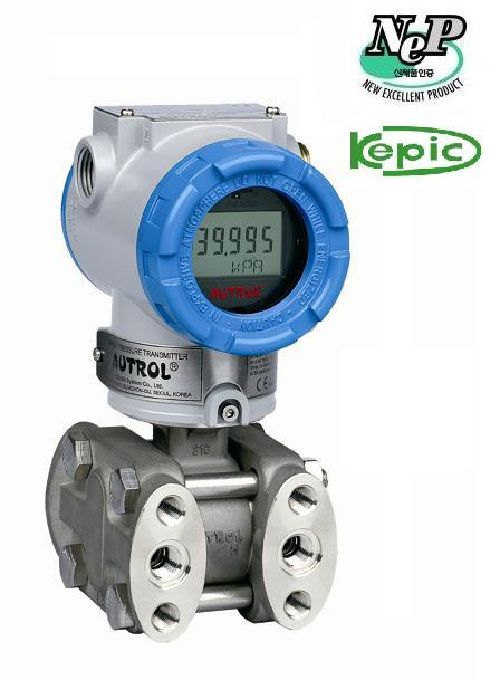

▶ CATALOG ▶ MANUAL    (same as APT3700N) ▶ The APT3700N Smart Pressure Transmitter is a micro-processor based high performance transmitter, which has flexible pressure calibration and output, automatic compensation of ambient temperature and process variable, configuration of various parameters, communication with HART protocol.
    The application is very various, as measuring pressure, flow and level by application method.

| Features |
|---|
| - Superior Performance   • Reference Accuracy : ±0.075% of Calibrated Span   • Long-Term Stability   • High Rangeability ( 100 : 1 ) - Flexibility   • Data configuration with HART configurator   • Zero point Adjustment & suppression - Reliability   • Continuous Self-Diagnostic Function   • Automatic Ambient Temperature Compensation   • Fail-mode Process Function   • EEPROM Write Protection - Equipment Qualifications   • Environmental Qualification   • Seismic Qualification and EMI/RFI Test |
| Specifications | |
|---|---|
| Flexible Sensor input | Differential Pressure |
| Various output | 4 ~20mA , Digital Signals |
| Setting Various Parameters | Zero/Span, Trim, Unit, Fail-mode, etc. |
| Self Diagnostic Function | Sensor, Memory, A/D Converter, Power, etc |
| Digital Communication | HART protocol |
| Working Pressure Limits (silicone oil) | 0 to 13.79 MPa for Ranges 3 to 8 |
| Hydrostatic Test Pressure | 3000 psi (20.7 MPa) |
| Burst Pressure | 10000 psig (68.9 MPa) |
| Qualified per IEEE Std 344-1987 and IEEE Std 323-1983, Regulatory Guide 1.180 | |
