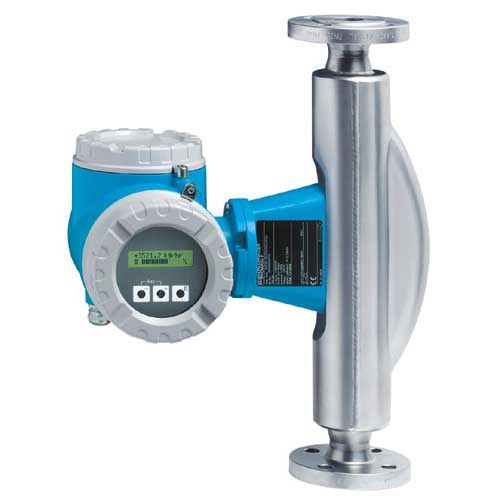

▶ CATALOG ▶ MANUAL▶ Coriolis Mass Flow Measuring System
    The universal and multivariable flowmeter for liquids and gases
    The Promass measuring devices make it possible to simultaneously record several process variables (mass/density/temperature) for various process conditions during measuring operation.
| Features |
|---|
| - Modular device and operating concept resulting in a higher degree of efficiency - Data back-up for increased process quality - Multivariable flow measurement in compact design - Insensitivity to vibrations thanks to balanced two-tube measuring system - Immune from external piping forces due to robust design - Easy installation without taking inlet and outlet runs into consideration - Extremely accurate measurement of liquids and gases, e.g. additives, oils, greases, acids,           alkalis, lacquers, paints and natural gas |
| Specifications | |
|---|---|
| Fluid temperatures | up to +350 °C |
| Process pressures | up to 100 bar |
| Mass flow measurement | up to 2200 t/h |
| Approvals for hazardous area | ATEX, FM, CSA, TIIS |
| Approval in the food industry/hygiene sector | 3A, FDA |
| Connection to process control systems | HART, PROFIBUS PA |
| Relevant safety aspects | Secondary containment (up to 40 bar), Pressure Equipment Directive, SIL-2 |
