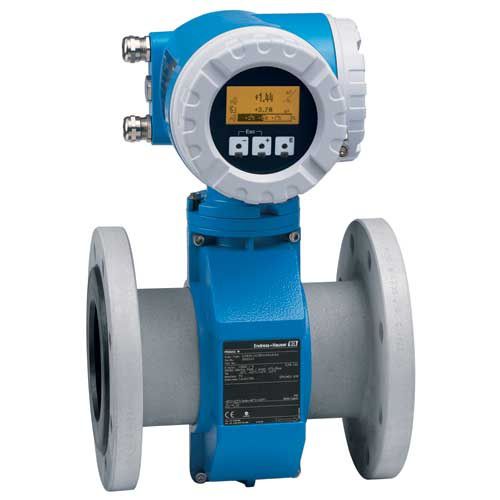

Promag 53W

▶ CATALOG ▶ MANUAL▶ Flow measurement of liquids in water or wastewater applications
    Promag measuring devices offer you cost-effective flow measurement with a high degree of accuracy for a wide range of process conditions

Features
- Modular device and operating concept resulting in a higher degree of efficiency - Software options for batching, electrode cleaning and for measuring pulsating flow - High degree of reliability and measuring stability - Uniform operating concept - No pressure loss - Not sensitive to vibrations - Simple installation and commissioning

Specifications
Fluid temperatures	up to +80 °C (176 °F)
Process pressures	up to 40 bar (580 psi)
Flow measurement	110000 m³/h (484315 gal/min)
Lengths	accordance with DVGW/ISO
Approvals for hazardous area	ATEX, IECEx, FM, CSA, NEPSI
Lined measuring pipes with materials approved for drinking water	KTW, WRAS, NSF, ACS, etc
Connection to process control system	HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, MODBUS RS485
