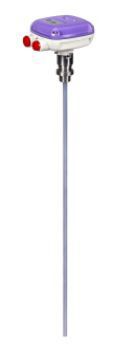

Capacitance Type LT
내용
Features | |
| •Able to measure both fluids and powders | |
| •Two-wire type; reduction of installation cost | |
| •Corrosion-proof and chemical-proof PTFE material | |
| •The structure of the detection part is simple, Without a mobile part; optimal for | |
| sanitation facilities such as food and beverage | |
| •Selection of various detection part structure according to the temperature/pressure | |
| •Explosion proof type possible (Ex d ⅡB T4/Ex ia ⅡB T6) | |
Specifications | |
| OUTPUT POWER SUPPLY | 4∼20mA DC 24V DC |
| TEMPERATURE | •-20℃∼60℃ |
| PRESSURE | AMB. |
| RANGE | •Standard Rod type: 1m, Wire type: 5m •Optional Rod type: 4m, Wire type: 30m |
| PRINCIPLE | The static capacity value, according to the dielectric constant change of the measured substance generated between the measured electrode and the earth electrode, is serially detected, and changed into an electric current signal of DC 4∼20mA to be put out. It is an all purpose meter controller that can measure fluids, powders, and interfaces. |
| APPLICATION | •PE, PP, PC, PVC powder tanks, etc. |
| •two-liquid interface | |
| •etc. | |
| REMARK | Mat'l : 304/316SS (PTFE Tubing) |
