Capacitance Type LT
내용
▶ CATALOG    (same as VEGACAL 62) ▶ You can get a MANUAL

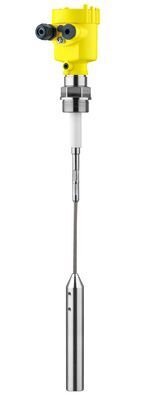

    in Download tab▶ VEGACAL 65 is a level sensor for continuous level measurement in all areas of industry.
    Partly insulated probes such as VEGACAL 65 are preferably used in bulk solids.
    However, the probe can also be used in non-conductive liquids such as e.g. oil.
    Sensor and vessel form the two electrodes of a capacitor.
    A level change causes a capacitance change which is converted into a continuous output signal by the connected processing electronics.
| Features |
|---|
| - High reliability - Simple mounting and setup - Measurement along the complete probe length - Probe can be shortened |
| Specifications | |
|---|---|
| Process fitting | from G1A |
| Process temperature | -50 … +200 °C |
| Process pressure | -1 … +64 bar (-100 … +6400 kPa) |
| Version | with cable |
