APT-3200

3 Smart Absolute Pressure Transmitter
▶ CATALOG ▶ MANUAL &nbsp &nbsp(same as APT3200)▶ The APT3200 Smart Pressure Transmitter is a micro processor-based high performance transmitter, which has flexible pressure calibration and output, automatic compensation of ambient temperature and process variable, configuration of various parameters, communication with HART protocol.
&nbsp &nbsp All Data of Sensor (Tag No., type, range etc.) is to be input, modified and stored.
&nbsp &nbsp HART communication can be Max 1.5Km.
&nbsp &nbsp In Multi-drop Mode, Max 15 transmitters can be connected and communicated with Host.
Features - Superior Performance
&nbsp • High Accuracy : ±0.075% of Span (at 20℃)
&nbsp • Long-Term Stability

- Flexibility
&nbsp • Measuring GP,AP
&nbsp • Data Configuration with HART configurator
&nbsp • High Rangeablity (100:1)

- Reliability
&nbsp • Continuous Self Diagnostic Function (sensor, memory, communication)
&nbsp • Automatic Compensation : Linearization of sensor input, Ambient temperature

- Compensation
&nbsp • Fail-mode process function by hardware and software
&nbsp • EEPROM Write Protection
&nbsp • I/O Isolation : Grounded T/C input
Specifications Flexible Pressure input Absolute Pressure, Vacuum Pressure Various output4 ~20mA(Analog), Digital Signals Setting Various Parameters Zero/Span, Fail-mode, Unit, Trim, etc. Self Diagnostic Function Sensor, A/D Converter, Memory, Power, etcDigital CommunicationHART protocol, CommandFlame-Proof Approval (KOSHA Ex d IIC T6) – (option) (KTL Ex ia II C) – (option) Overpressure Limits
(silicone oil)0 to 400 kPa for Range 4
0 to 1500 kPa for Range 5
0 to 3000 kPa for Range 6<Automatic Compensation of Ambient Temperature Flovel 2010.09.13

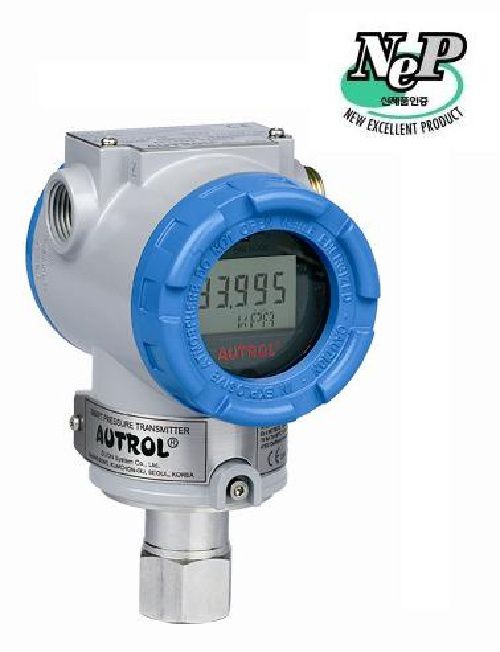

2 Smart Gauge Pressure Transmitter
▶ CATALOG ▶ MANUAL &nbsp &nbsp(same as APT3200)▶ The APT3200 Smart Pressure Transmitter is a micro processor-based high performance transmitter, which has flexible pressure calibration and output, automatic compensation of ambient temperature and process variable, configuration of various parameters, communication with HART protocol.
&nbsp &nbsp All Data of Sensor (Tag No., type, range etc.) is to be input, modified and stored.
&nbsp &nbsp HART communication can be Max 1.5Km.
&nbsp &nbsp In Multi-drop Mode, Max 15 transmitters can be connected and communicated with Host.
Features - Superior Performance
&nbsp • High Accuracy : ±0.075% of Span (at 20℃)
&nbsp • Long-Term Stability

- Flexibility
&nbsp • Measuring GP,AP
&nbsp • Data Configuration with HART configurator
&nbsp • High Rangeablity (100:1)

- Reliability
&nbsp • Continuous Self Diagnostic Function (sensor, memory, communication)
&nbsp • Automatic Compensation : Linearization of sensor input, Ambient temperature

- Compensation
&nbsp • Fail-mode process function by hardware and software
&nbsp • EEPROM Write Protection
&nbsp • I/O Isolation : Grounded T/C input
Specifications Flexible Pressure input Gauge Pressure Various output4 ~20mA(Analog), Digital Signals Setting Various Parameters Zero/Span, Fail-mode, Unit, Trim, etc. Self Diagnostic Function Sensor, A/D Converter, Memory, Power, etcDigital CommunicationHART protocol, CommandFlame-Proof Approval (KOSHA Ex d IIC T6) – (option) (KTL Ex ia II C) – (option) Overpressure Limits
(silicone oil)-100 to 0 kPa for Range 2
-100 to 100 kPa for Range 3
-100 to 400 kPa for Range 4
-100 to 1500 kPa for Range 5
-100 to 3000 kPa for Range 6
-100 to 20000 kPa for Range 7
-100 to 30000 kPa for Range 8
-100 to 90000 kPa for Range 9 Automatic Compensation of Ambient Temperature Flovel 2010.09.13

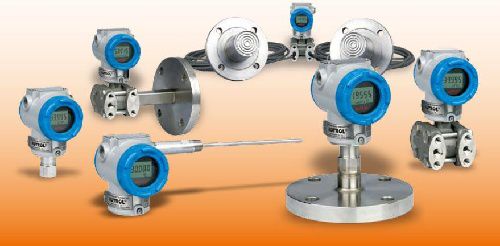

1 Special Order Smart Pressure Transmitter
Various Type Of Smart Pressure Transmitter Flovel 2010.09.13
