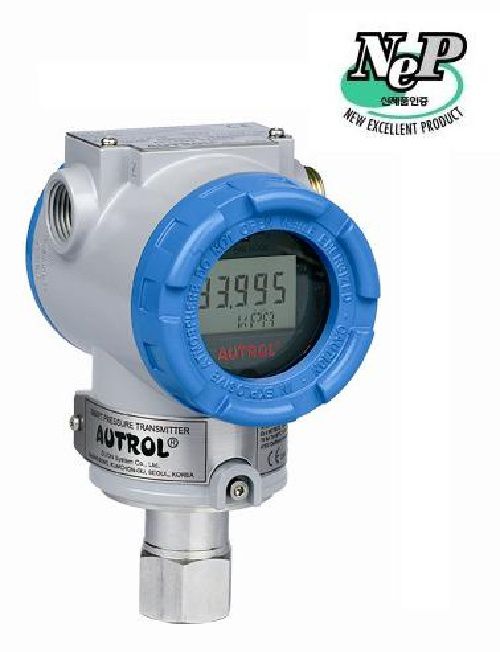

▶ CATALOG ▶ MANUAL    (same as APT3200)▶ The APT3200 Smart Pressure Transmitter is a micro processor-based high performance transmitter, which has flexible pressure calibration and output, automatic compensation of ambient temperature and process variable, configuration of various parameters, communication with HART protocol.
    All Data of Sensor (Tag No., type, range etc.) is to be input, modified and stored.
    HART communication can be Max 1.5Km.
    In Multi-drop Mode, Max 15 transmitters can be connected and communicated with Host.
| Features |
|---|
| - Superior Performance   • High Accuracy : ±0.075% of Span (at 20℃)   • Long-Term Stability - Flexibility   • Measuring GP,AP   • Data Configuration with HART configurator   • High Rangeablity (100:1) - Reliability   • Continuous Self Diagnostic Function (sensor, memory, communication)   • Automatic Compensation : Linearization of sensor input, Ambient temperature - Compensation   • Fail-mode process function by hardware and software   • EEPROM Write Protection   • I/O Isolation : Grounded T/C input |
| Specifications | |
|---|---|
| Flexible Pressure input | Gauge Pressure |
| Various output | 4 ~20mA(Analog), Digital Signals |
| Setting Various Parameters | Zero/Span, Fail-mode, Unit, Trim, etc. |
| Self Diagnostic Function | Sensor, A/D Converter, Memory, Power, etc |
| Digital Communication | HART protocol, Command |
| Flame-Proof Approval | (KOSHA Ex d IIC T6) – (option) (KTL Ex ia II C) – (option) |
| Overpressure Limits (silicone oil) | -100 to 0 kPa for Range 2 -100 to 100 kPa for Range 3 -100 to 400 kPa for Range 4 -100 to 1500 kPa for Range 5 -100 to 3000 kPa for Range 6 -100 to 20000 kPa for Range 7 -100 to 30000 kPa for Range 8 -100 to 90000 kPa for Range 9 |
| Automatic Compensation of Ambient Temperature | |
