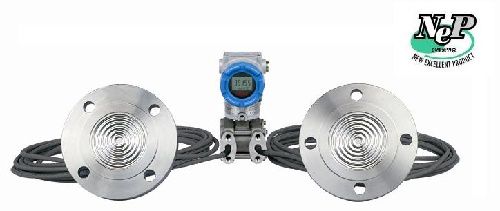

RemoteType-Smart Level Transmitter (LFC＆LEC)

작성자
Flovel
작성일
2010.09.13
첨부파일0
추천수
0
조회수
790
내용


▶ CATALOG &nbsp &nbsp(same as APT3100L)▶ The ATT-3100L Smart Pressure Transmitter is a micro processor-based high performance transmitter, which has flexible pressure calibration and output, automatic compensation of ambient temperature and process variable, configuration of various parameters, communication with HART protocol.
&nbsp &nbsp All Data of Sensor(Tag No., Type, Range) is to be input, modified and stored.
&nbsp &nbsp HART communication can be Max 1.5Km.
&nbsp &nbsp In Multi-drop Mode, Max 15 transmitters can be connected and communicated with Host.
&nbsp &nbsp

Features
- Superior Performance
&nbsp • High Accuracy : ±0.075% of Span (at 20℃)
&nbsp • Long-Term Stability

- Flexibility
&nbsp • Configuration of data with HART configurator
&nbsp • High Reageablity (100:1)

- Reliability
&nbsp • Continuous Self Diagnostic Function (sensor, memory, communication)
&nbsp • Automatic Compensation : Linearization of sensor input, Ambient temperature

- Compensation
&nbsp • Fail-mode process function by hardware and software
&nbsp • EEPROM Write Protection
&nbsp • CE EMC Conformity Standard(EN50081-2,EN50082-2)


Specifications
Flexible Sensor input Measuring hydrostatic pressure head and transmitting liquid level
Various output4 ~20mA(Analog),Digital Signals
Setting Various Parameters Zero/Span, Fail-mode, Unit, Trim, etc.
Self Diagnostic Function Sensor, A/D Converter, Memory, Power, etc
Digital Communication HART protocol, Command
Flame-Proof Approval (KOSHA Ex d IIC T6) – (option) (KTL Ex ia II C) – (option)
Automatic Compensation of Ambient Temperature
