Smart Gauge Pressure Transmitter (APT3100-G)

작성자
Flovel
작성일
2010.09.10
첨부파일0
추천수
0
조회수
1006
내용

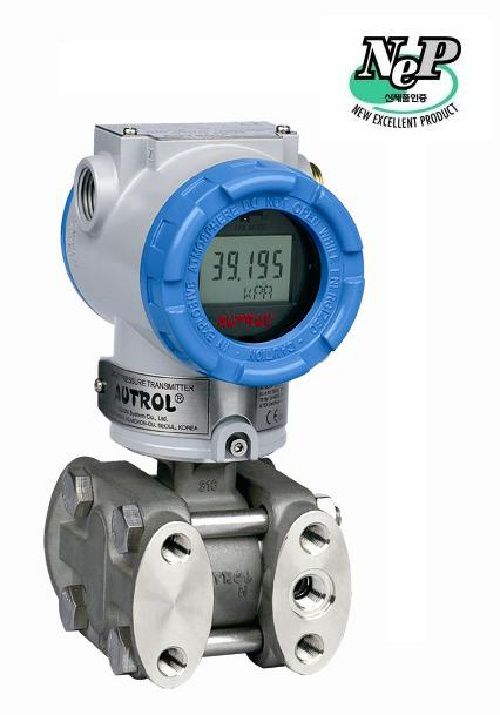

▶ CATALOG ▶ MANUAL &nbsp &nbsp(same as APT3100)▶ The ATT-3100 Smart Pressure Transmitter is a micro processor-based high performance transmitter, which has flexible pressure calibration and output, automatic compensation of ambient temperature and process variable, configuration of various parameters, communication with HART protocol.
&nbsp &nbsp The application is very various, as measuring Pressure, Flow and Level by application method.
&nbsp &nbsp All Data of Sensor (Tag No., type, range etc.) is to be input, modified and stored.
&nbsp &nbsp HART communication can be Max 1.5Km.
&nbsp &nbsp In Multi-drop Mode, Max 15 Transmitters can be connected and communicated with Host.

Features
- Superior Performance
&nbsp • High Accuracy : ±0.075% of Span (at 20℃)
&nbsp • Long-Term Stability

- Flexibility
&nbsp Selection of various Pressure : DP,GP
&nbsp • Data confirguration with HART configurator
&nbsp • High Reangeability (100:1)

- Reliability
&nbsp • Continuous Self Diagnostic Function (sensor, memory, Communication)
&nbsp • Automatic Compensation : Linearization of sensor input, Ambient temperature

- Compensation
&nbsp • Fail-mode process function by hardware and software
&nbsp • EEPROM Write Protection
&nbsp • CE EMC Conformity Standards(EN50081-2,EN50082-2)


Specifications
Flexible Sensor input Gauge Pressure
Various output4 ~20mA(Analog),Digital Signals
Setting Various Parameters Zero/Span, Fail-mode, Unit, Trim, etc.
Self Diagnostic Function Sensor, A/D Converter, Memory, Power, etc
Digital Communication HART protocol, Command
Flame-Proof Approval (KOSHA Ex d IIC T6) – (option), (KTL Ex ia II C) – (option)
Working Pressure Limits (silicone oil)0 to 13.79 MPa for Ranges 3 to 8
0 to 31.02 MPa for Range 9
0 to 51.71 MPa for Range 0
Hydrostatic Test Pressure Range 3 to 8 : 2000 psi ( 13.8 MPa)
Range 9 : 4500 psi ( 31.0 MPa)
Range 6 : 7500 psi ( 51.7 MPa)
Burst Pressure10000 psig (68.9 MPa)
Automatic Compensation of Ambient Temperature
